High grade ceramic new building chimney SL
single-storey
Primary Sizes
SL 12
|
34 x 34 cm |
SL 14
|
36 x 36 cm
|
SL 16 |
36 x 36 cm |
SL 18 |
40 x 40 cm |
SL 20 |
43 x 43 cm |
SVL 1808
|
40 x 69 cm |
SVL 1810
|
40 x 69 cm |
SL 1812
|
40 x 69 cm |
SL 1814
|
40 x 69 cm |
SVLI 1608
|
38 x 62 cm |
SVLI 1610
|
38 x 62 cm |
SVLI 1612
|
38 x 62 cm |
I stands for additional
installation shaft
(double-flue 6.5 x 20 cm)
For further sizes,
see Price List
pp. 12 – 13;
Special sizes upon request
Application
Ambient-air independent for solid fuels
Chimney systems

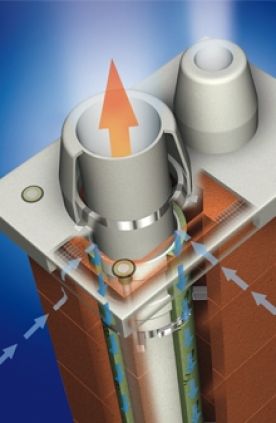

Triple-shelled, concentric air inlet, high-grade ceramic pipes, counter current operation, for dry and wet operation
Licence number
Z-7.1-3317 W3 licensed for pellets, CE identification for the high-grade ceramic pipes A1N1/A2P1/B2N1/D3P1, Heat Conduction Group IIa (TR 40)
System components
High-grade ceramic pipe, insulated, prefabricated elements of up to 7.5 m, ceramic cloth seals
Technical data
Ambient-air independent or ambient-air dependent for solid fuels, circulating fresh air duct, low pressure operation, in combination with gas or oil like System SV
Areas of application
Exhaust temperatures of 30 - 400° C, solid fuels, pellets, fireplace with external air inlet
Recommended cross sections
For fireplaces/tiled stoves 160 - 200 mm depending on make, for pellet fireplaces 120 - 200 depending on make and size
Connection possibilities
One fireplace for ambient air-independent solid fuel, more than one fireplace for ambient-air dependent solid fuel
